 PL series

큰이미지
  • 작은이미지

자료 다운받기

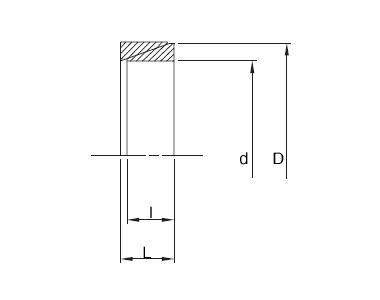

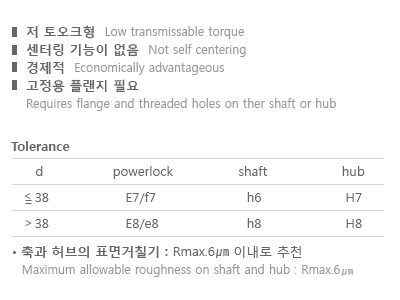

Dimension Required
clamping force		 Transmissable Minimum clamping distance
for 1,2,3 or 4 clamping elements		 Contact
pressure		 Locking
screw		 mass
Kg		 Cad
d
mm		 D
mm		 L
mm		 I
mm		 N torque axial force 1
mm		 2
mm		 3
mm		 4
mm		 shaft hub Q`ty size
Nm kN N/㎟ N/㎟
10 13 4.5 3.7 13250 7.0 1400 2 2 3 3 120 92 3 M4 0.0018
12 15 4.5 3.7 14450 10.0 1670 2 2 3 3 120 96 3 M4 0.0021
13 16 4.5 3.7 14600 11.8 1810 2 2 3 3 120 98 3 M4 0.0023
14 18 6.3 5.3 23800 19.6 2800 3 3 4 5 120 93 4 M4 0.0049
15 19 6.3 5.3 24250 22.5 3000 3 3 4 5 120 95 6 M4 0.0053
16 20 6.3 5.3 24500 26.0 3190 3 3 4 5 120 96 6 M4 0.0055
17 21 6.3 5.3 24850 29.0 3400 3 3 4 5 120 97 6 M4 0.0058
18 22 6.3 5.3 25300 32.0 3600 3 3 4 5 120 98 6 M4 0.0061
19 24 6.3 5.3 29700 36.0 3790 3 3 4 5 120 95 6 M4 0.0078
20 25 6.3 5.3 30050 40.0 4000 3 3 4 5 120 96 6 M4 0.0081
22 26 6.3 5.3 28850 48.0 4400 3 3 4 5 120 102 6 M4 0.0072
24 28 6.3 5.3 29950 58.0 4800 3 3 4 5 120 103 6 M4 0.0080
25 30 6.3 5.3 32400 62.0 5000 3 3 4 5 120 100 6 M4 0.0100
28 32 6.3 5.3 32600 78.0 5600 3 3 4 5 120 105 6 M4 0.0090
30 35 6.3 5.3 35500 90.0 6000 3 3 4 5 120 103 8 M4 0.0120
32 36 6.3 5.3 366650 102.0 6400 3 3 4 5 120 107 8 M4 0.0100
35 40 7 6.0 45700 138.0 7900 3 3 4 5 120 105 6 M5 0.0170
36 42 7 6.0 48200 147.0 8200 3 3 4 5 120 103 6 M5 0.0200
38 44 7 6.0 49700 163.0 8600 3 3 4 5 120 104 6 M5 0.0210
40 45 8 6.6 58800 199.0 9950 3 4 5 6 120 107 6 M6 0.0230
42 48 8 6.6 62600 219.0 10400 3 4 5 6 120 105 6 M6 0.0280
45 52 10 8.6 92150 328.0 14600 3 4 5 6 120 104 8 M6 0.0420
48 55 10 8.6 94600 373.0 15600 3 4 5 6 120 105 8 M6 0.0450
50 57 10 8.6 96500 405.0 16200 3 4 5 6 120 105 8 M6 0.0470
55 62 10 8.6 101800 490.0 17800 3 4 5 6 120 106 10 M6 0.0500
56 64 21 10.4 128400 615.0 22000 3 4 5 7 120 105 6 M8 0.0670
60 68 12 10.4 133400 705.0 23500 3 4 5 7 120 106 6 M8 0.0720
63 71 12 10.4 137300 780.0 24800 3 4 5 7 120 106 8 M8 0.0770
65 73 12 10.4 140400 830.0 25600 3 4 5 7 120 107 8 M8 0.0790
70 79 14 12.2 176000 1120.0 32000 3 5 6 7 120 106 10 M8 0.1100
71 80 14 12.2 178000 1160.0 32600 3 5 6 7 120 107 10 M8 0.1100
75 84 14 12.2 189600 1290.0 34400 3 5 6 7 120 107 10 M8 0.1200
80 91 17 15.0 251000 1810.0 45000 4 5 6 8 120 105 8 M10 0.1900
85 96 17 15.0 261600 2040.0 48000 4 5 6 8 120 106 8 M10 0.2000
90 101 17 15.0 272400 2290.0 51000 4 5 6 8 120 107 10 M10 0.2200
95 106 17 15.0 283200 2550.0 54000 4 5 6 8 120 108 10 M10 0.2200
100 114 21 18.7 377700 3520.0 7000 4 6 6 9 120 105 12 M10 0.3800
